Pneumatic plastic strapping machine

Pneumatic plastic strapping machine

  • Product Item : CMV / A series
  • Category: Strapping machine
  • Views:3005
  • For PP/PET strap use
  • Power by air
  • Strap Dim.: W 13mm ~ 25mm
  • Strap Dim.: T 0.5mm ~ 1.5mm
  • Product description:Pneumatic strapping machine is widely used because of the advantages of convenience, high force, low repair rate and well environmentally suitability.
  • Order online

Pneumatic strapping tool is used widely because of high tension force and well environmental suitability. Especially it can use width 19mm and 25mm big size PET strap and remedy the disadvantage of battery powered strapping tool.


Popular brand CMV/ AQD/ A SERIES

Strap qualities: Polyester (PET) and/Polypropylene (PP)

Strap dimensions: 13mm ~ 25mm (Width)

0.5mm ~ 1.5mm (thickness)

Binding constrictive force (When input pressure 0.63Mpa):3500N

Optimal Working pressure: 0.63Mpa

Air Pressure: 0.5~ 0.7 Mpa (72 ~ 100 psi)

Consumption of Air Compressed : 0.3L / Min

Adjusting Range of Welding Time: 2-5 S

Net Weight: 3.8 kg

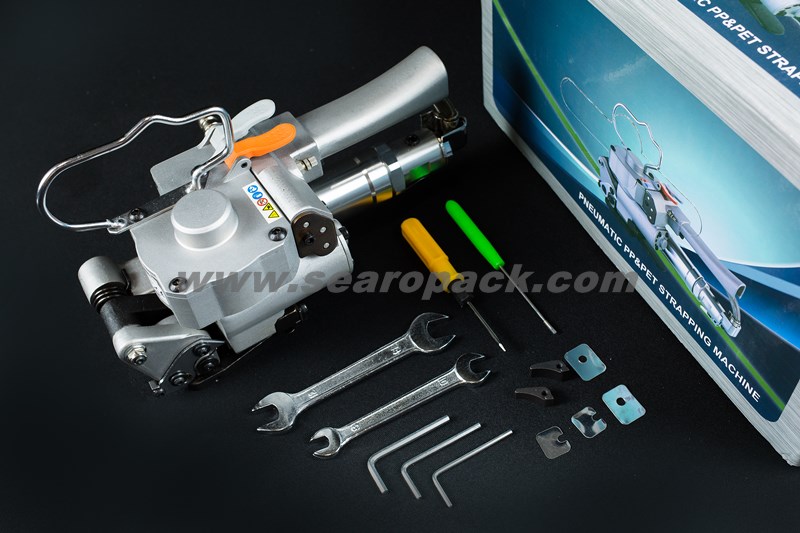

pneumatic strapping tool set

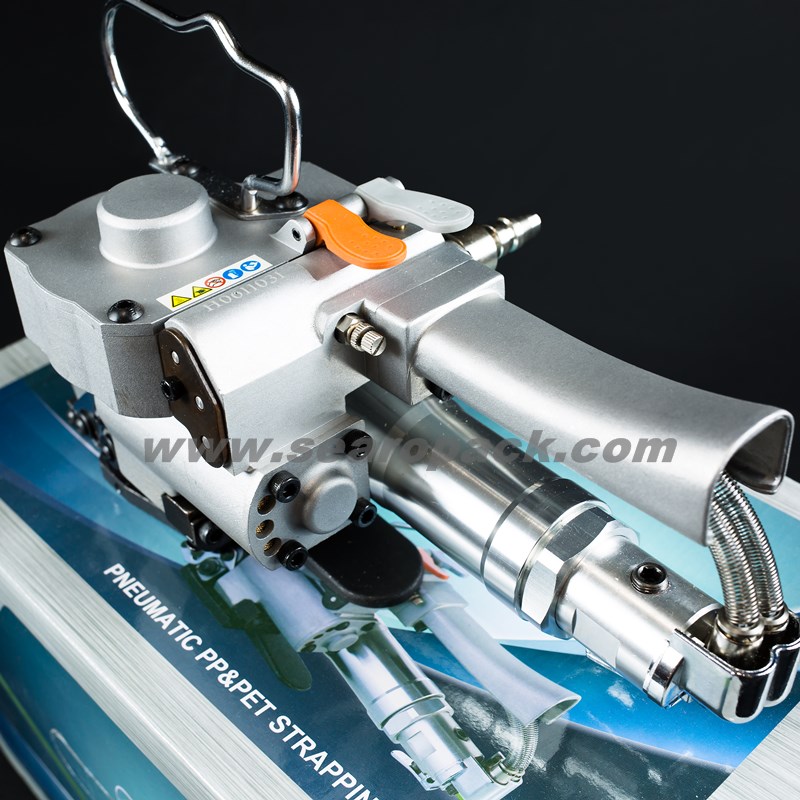

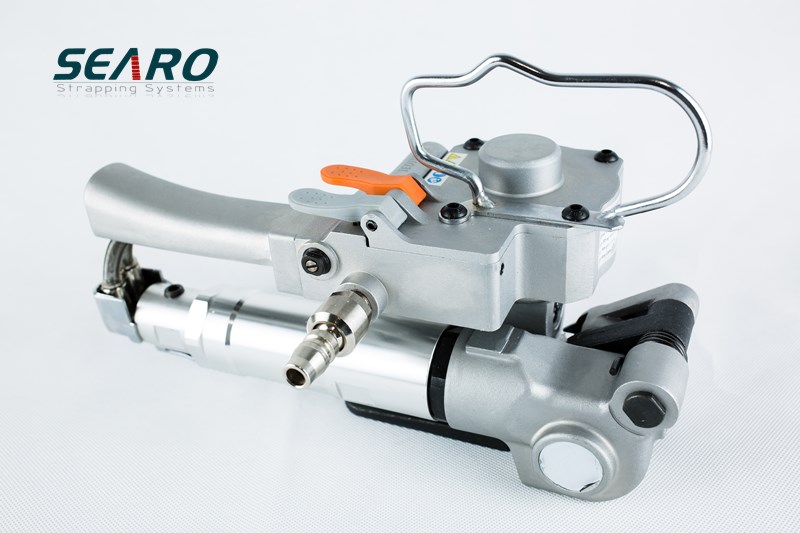

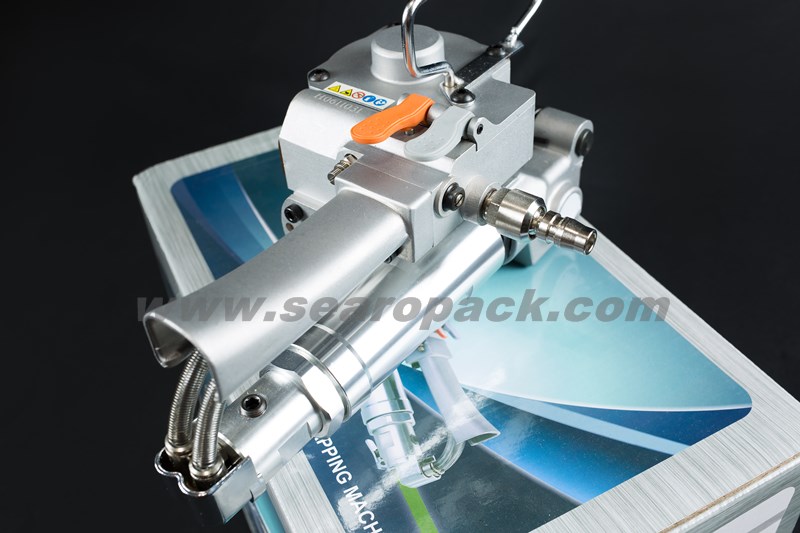

details of pneumatoc strapping tool CMV

details of pneumatic strapping tool A series
